XMT series universal input temperature controller
- XMT Series Product Introduction
Choose XMT-6000 series for industrial temperature control! Covering multiple models such as XMTG/XMTE, suitable for 45 45, 92 92-inch openings allow for flexible device integration. Two rows of digital tubes (or three digits) clearly display current and set values. It supports K/J/E/N/PT100 signal inputs, relay/solid-state relay outputs, and 5A @ 250VAC load stabilization. It features heating/cooling, auto-tuning, PID/ON/OFF dual control, a wide voltage range of 100-240VAC, and 0-50°C ambient compatibility, providing precise, stable, and reliable temperature control, perfect for industrial temperature control needs.
The XMT-6000 series temperature controllers offer a wide range of power supplies, operating stably with voltages from 100 to 240VAC. Operating in temperatures from 0°C to 50°C and relative humidity from 30% to 85% (non-condensing), they operate reliably in both mild indoor environments and industrial environments subject to temperature and humidity fluctuations, providing reliable temperature control for your equipment.

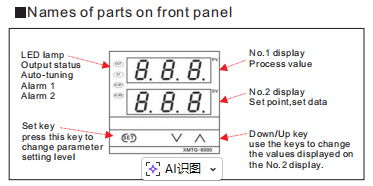

- show : Two rows of digital tubes (XMT-6000-3 is a 3-digit digital tube) displaying the current value and the set value.

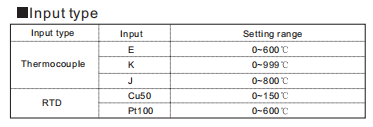

- enter : Single input signal supports K, J, E, N, PT100.

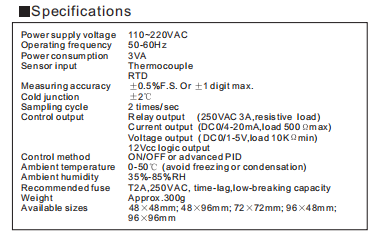

- Output : Relay/solid state relay is optional, SPDT relay load capacity is 5A@250VAC, 6A@125VAC, and has +12VDC feed output (35mA maximum load).
- control ：With one or two relay output alarms, optional heating/cooling control, support for self-tuning, control mode is PID, ON/OFF switch control.
- Power supply and environment : Power supply 100 - 240VAC, operating environment temperature 0 - 50℃, relative humidity 30% - 85% (non-condensing).
- Technical support : 60 years of focus on thermal management technology, with dozens of utility model and invention patents, long-term cooperation with universities and research institutes in R&D, participation in the formulation of multiple standards, and technical strength comparable to international standards
- Reliable quality : We have built an advanced comprehensive temperature measurement and control center, and strictly test the entire process from R&D to mass production; the production line is based on the dual-track orientation of quality and efficiency, and 90% of the core manufacturing equipment and testing equipment are designed by ourselves to ensure process stability
- Perfect service ：Relying on the five major systems of "technology research and development, digital intelligence construction, expert think tank, education and training, and marketing matrix", we provide one-stop services from product selection, installation guidance to after-sales maintenance, and quickly respond to customer needs
- Widely recognized ：Our products serve the auto parts, energy, petroleum, military, nuclear power, pharmaceutical and other industries. We are a long-term cooperative supplier of the Fortune 500 and have a global presence.
